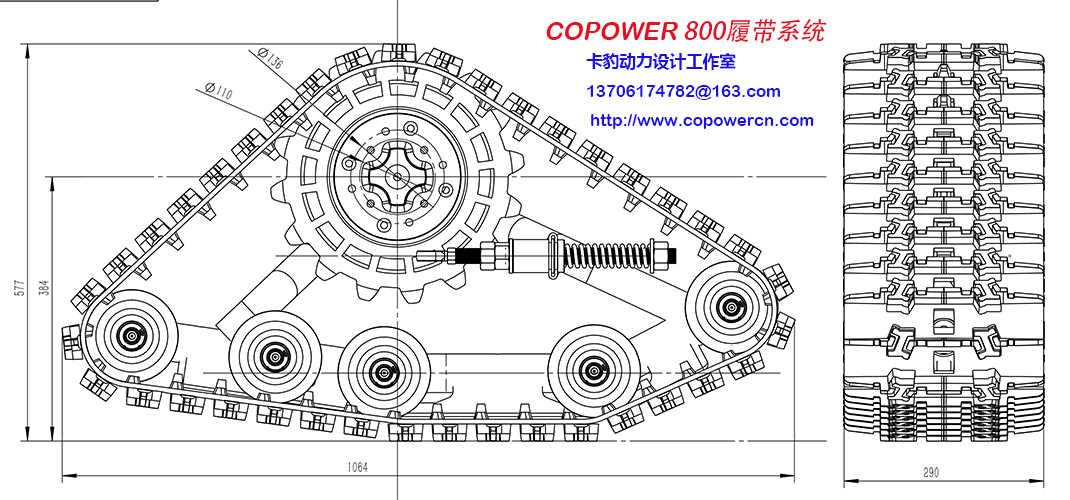

Detailed Description Specifications（履带尺寸）:
Track width（履带宽）: 290mm;
Circumference of rear（履带长）: 2432 mm
Packing Information（包装信息）:
1 PCS（单只）:
N.W（净重）.: 34 KGS
G.W（毛重）.: 40 KGS
4 CTN/SET（４套装）:
N.W（净重）.: 140 KGS
G.W.（毛重）: 160 KGS
Packing Size（整套包装尺寸）: 1200X1100X640 MM
Container Qty（装柜量） :
20'GP: 24 SETS ; 40'HQ: 72 SETS

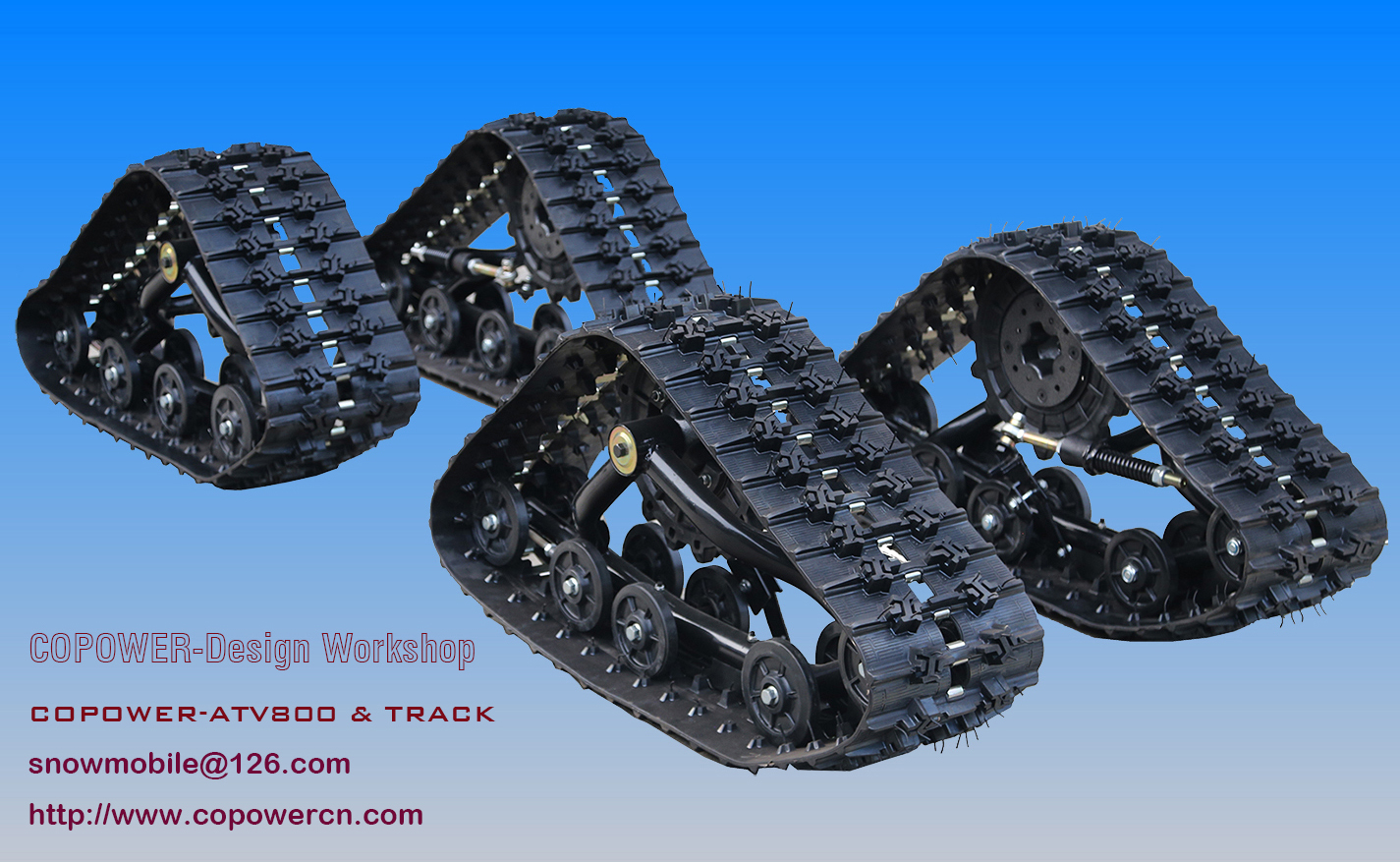

| 1 | Product name | Track System |
| 2 | Product model | KB800-Track |
| 3 | Version | UHMWPE molded guide wheel |
| 4 | Undercarriage |
|
| 4.1 | Weight | Front:34kg Rear:36kg |
| 4.2 | Offset(front & rear)(1) | Front:670mm Rear:770mm |
| 4.3 | Offset(side to side)(2) | 130mm |
| 4.4 | Length | Front:1025mm Rear:1025mm |
| 4.5 | Wheel center Height | Front:360mm Rear:365mm |
| 4.6 | Mounting hardware weight | 2kg |
| 5 | Rubber track |
|
| 5.1 | Width | Front:290mm Rear:290mm |
| 5.2 | Length | Front:2432mm Rear:2432mm |
| 5.3 | Lug height | 25mm |
| 6 | Performance |
|
| 6.1 | Ground surface | Front:0.089sp.m Rear:0.125sp.m |
| 6.2 | Ground clearance(average) | Increased by 30mm |
| 6.3 | Maintained speed(average) | 55% |
| 7 | Specification |
|
| 7.1 | Drive type | Internal drive |
| 7.2 | Rubber track | Tooth depth:25 Tooth breadth:25 Pitch:64.89 |
| 7.3 | Frame | Carbon steel |
| 7.4 | Sprocket | 18 teeth |
| 7.5 | Wheel | 130mm small track roller with single bearing |
| 200mm big track roller with single bearing |
| 7.6 | Anti-rotation | Redesigned mild steel anti-roation |
| 7.7 |
| Spring and progessive damper |
| 7.8 | Hub and bearing | Forging steel multi-bolt patter hub. |
| 7.9 | Guide | UHMWPE |
| 7.10 | Tandem & suspension | Independent suspension |
